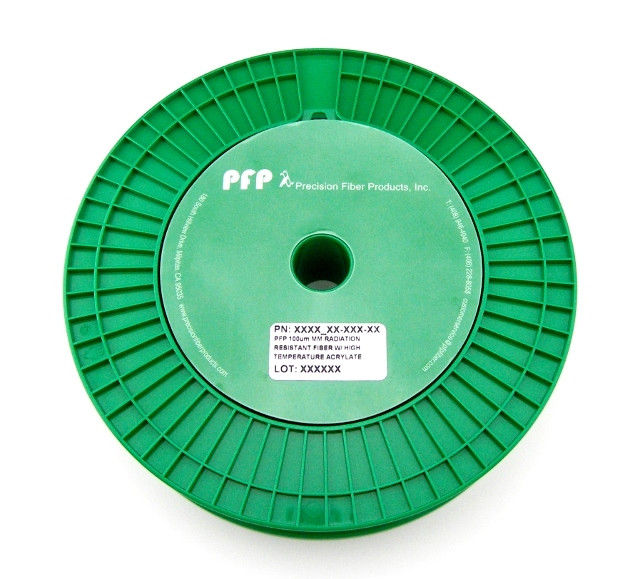

PFP MM Radiation Resistant Fiber w/ High Temperature Acrylate 100um
SKU GR100_140-24-HTA
Price
$13.65
Excluding Sales Tax

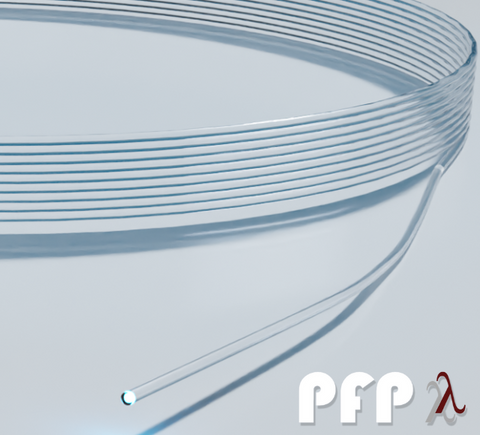

PFP's specialty multi-mode fibers are ideal for a variety of diverse applications. They are capable of withstanding extreme environments and large temperature swings. Features include step index and graded index configurations, numerical apertures from 0.06 to 0.45 and core sizes from 10 ?m to 700 ?m. All fibers are available with a high temperature acrylate, silicone, or polyimide coating.
Applications:
| Features & Benefits:
|
Optical Specifications:
| Operating Wavelength | 800-1350 nm |
| Bandwidth | ≤ 8805; 100 MHz-km @ 850 nm |
| ≤ 8805; 100 MHz-km @ 1300 nm | |
| Attenuation | ≤ 8804; 5.0 dB/km @ 850 nm |
| ≤ 8804; 3.0 dB/km @ 1300 nm | |
| Core Numerical Aperture | 0.29 ≤ 177; 0.02 |
Geometrical & Mechanical Specifications:
| Core Diameter | 100.0 ≤ 177; 3.0 µm |
| Clad Diameter | 140.0 ≤ 177; 3.0 µm |
| Coating Diameter | 172 ≤ 177; 2 µm |
| Core-Clad Concentricity | < 5.0 µm |
| Coating Material | Thermally Cured Polyimide |
| Operating Temperature | -65 to +300 °C |
| Short-Term Bend Radius | ≤ 8805; 7 mm |
| Long-Term Bend Radius | ≤ 8805; 15 mm |
| Proof Test Level | ≤ 8805; 200 kpsi (1.4 GN/m²) |
Note: This item is sold in increments of 1 meter. A re-spooling & cut fee of $30.00 is included for all lengths under the 100 meter spool size. To order an entire 100 meter spool please contact our Customer Service Department.
Fiber Length
